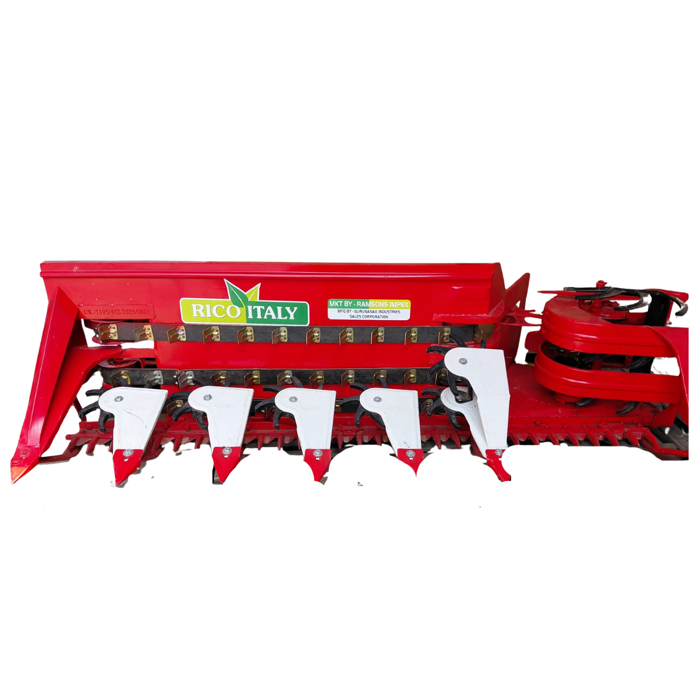

Model: RI-2200 SINGHA

FRONT AND BACK BOTH OPERATED

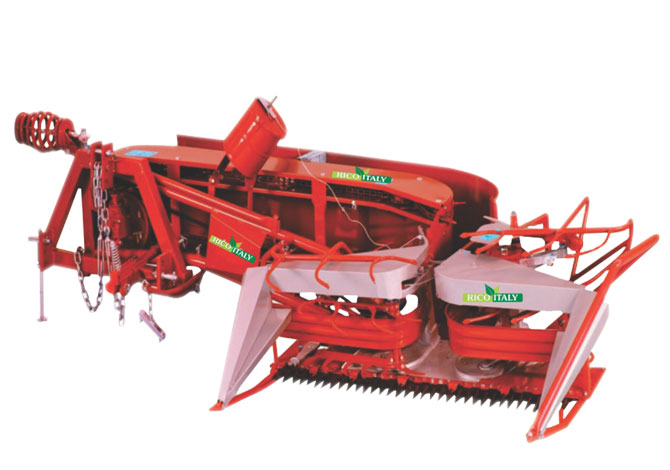

RICOITALY Reaper-Binder driven by the P.T.O of the tractor can reap and bind the crops such as wheat very easily, effectively and efficiently.

The cutting height is adjusted by its hydraulic sleeves and automatically preserves its level in accord with the unevenness. Our heavy frame design , heavy cutter bar assymbly along with the best knotting mechanism ensures the suceesful reaping and binding everytime and also durability of machine for many years.

RICOITALY offers its reaper binder in both front mounted and back mounted models and also suggests to use RICOITALY reaper binder rope for the best and smooth operations.

Technical Specification:

Model RI 2200
Working of the Machine 2250 mm
Working width of the machine 2150 mm
Guard Spacing 80 mm
Power Source Recommended 25 & above hp
Knife Stroke 75 mm
Stroke per minute 585 at 1000 rpm


Model: RI 3100

Overall Length3460 mm
Overall Width1900 mm
Reaping Width1400 mm
Reaping HeightAdjustable
Capacity4.5-5 Ha/H
Weight385 Kgs.
PTO Shaft Rotation540 Max.
Required Horse Power35-45
