HTP SPRAYERS

Designed for economic and effective application of pesticide also Suitable for water lifting and large spraying operations in orchards, agricultural lands, coffee & tea plantation.

HTP horizontal triplex piston power sprayer unit is Supplied with pulley, pressure vessel, pressure gauge, pressure regulator valve, and some spare parts. We have a complete range of high-pressure sprayers starting from 16, 18, 22, 26, 30, 50, 80, and 120 liters. Our sprayers are designed to work continually for a longer duration without any maintenance.

SPECIAL FEATURES
  • Good range, available of all sizes
  • Spare parts easily available
  • Higher pressure, value for money.

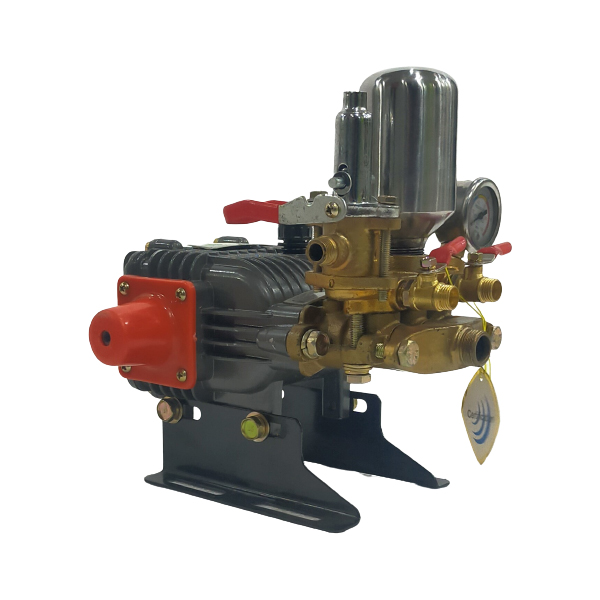

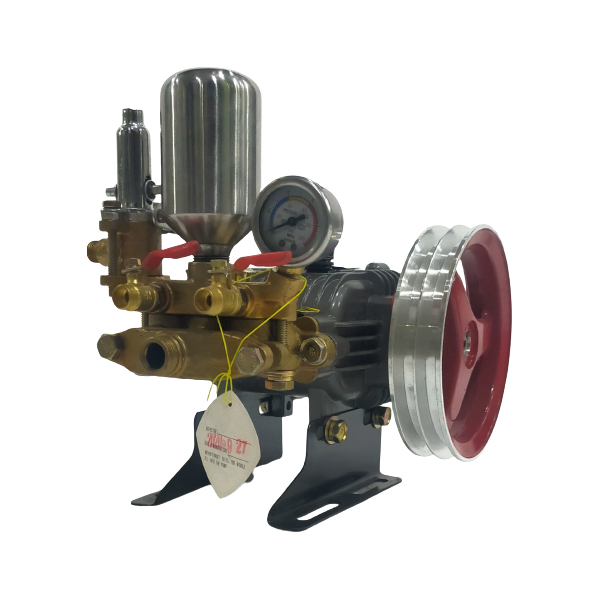

HTP-16

TECHNICAL DATA
Model HTP 16
Speed (cc) 800-1200
Flow Rate (lpm) 17-19
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 1-2

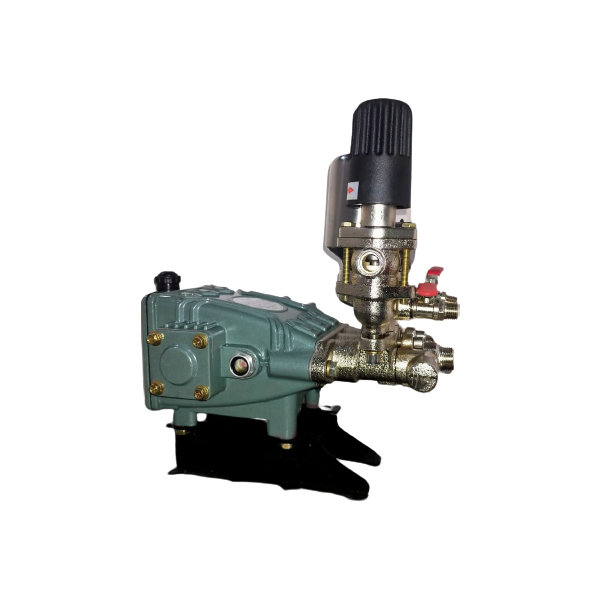

HTP-18

TECHNICAL DATA
Model HTP 18
Speed (cc) 800-1200
Flow Rate (lpm) 18-28
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 2

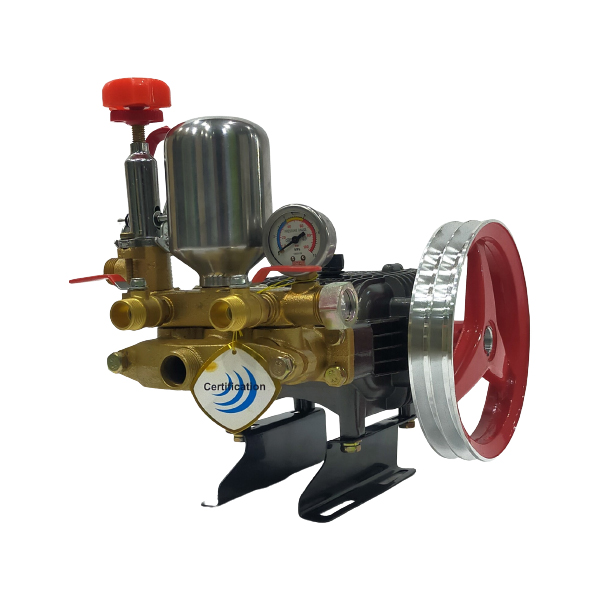

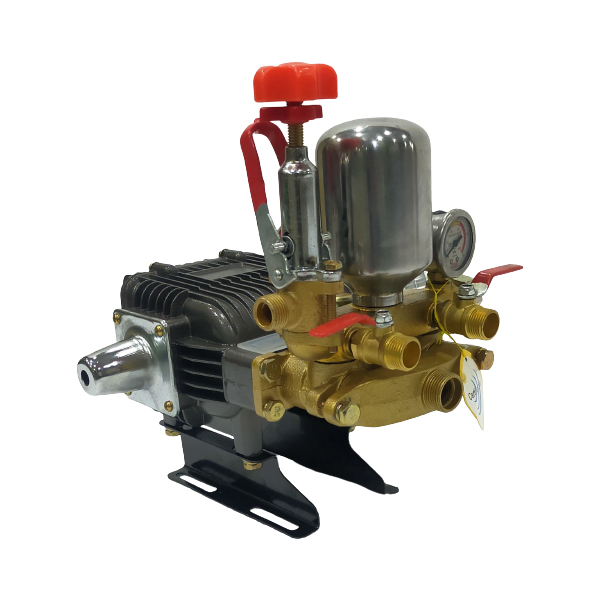

HTP-22

TECHNICAL DATA
Model HTP 22
Speed (cc) 800-1200
Flow Rate (lpm) 14-22
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 2

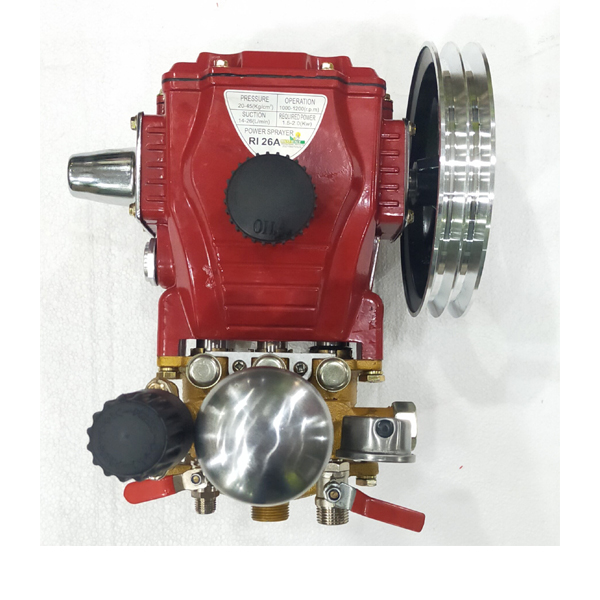

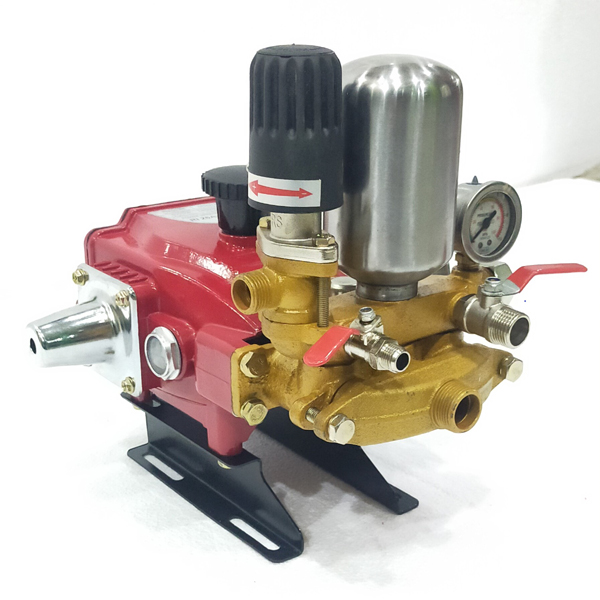

HTP-26

TECHNICAL DATA
Model HTP 26
Speed (cc) 800-1200
Flow Rate (lpm) 14-26
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 3

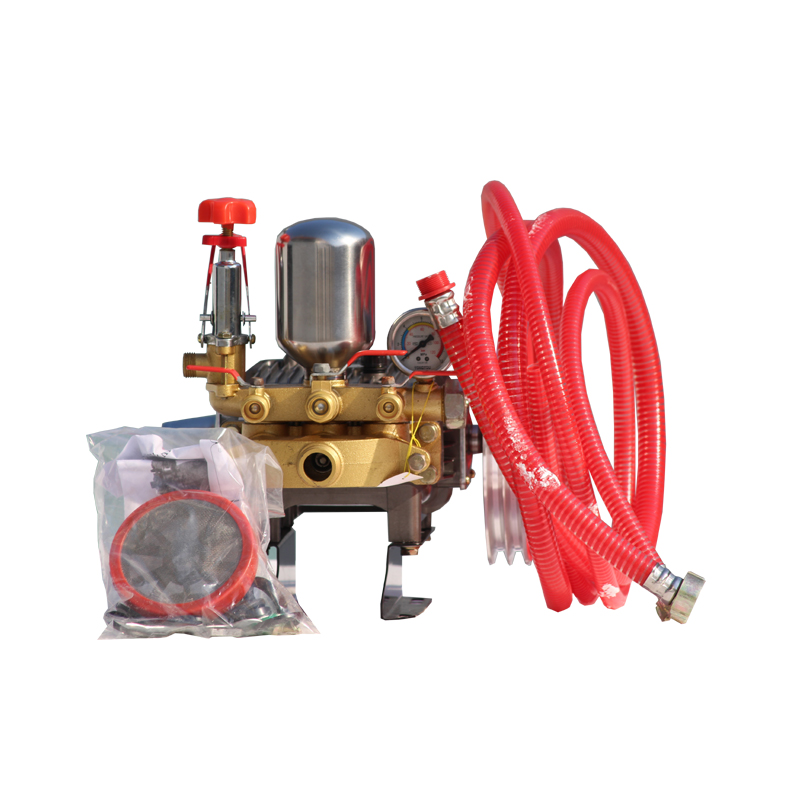

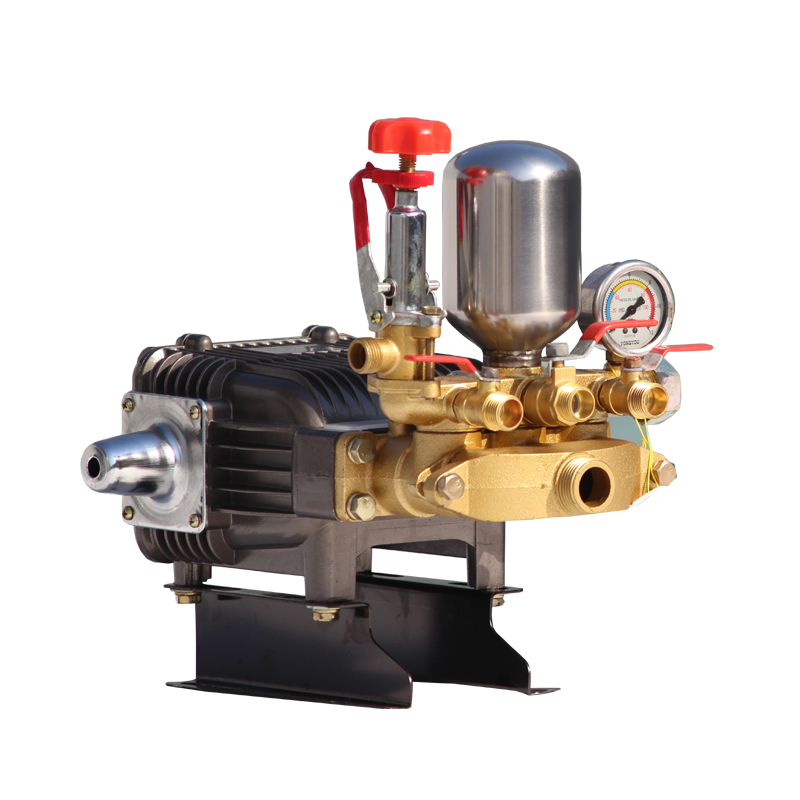

HTP-30

TECHNICAL DATA
Model HTP 30
Speed (cc) 800-1000
Flow Rate (lpm) 33-40
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 3-5

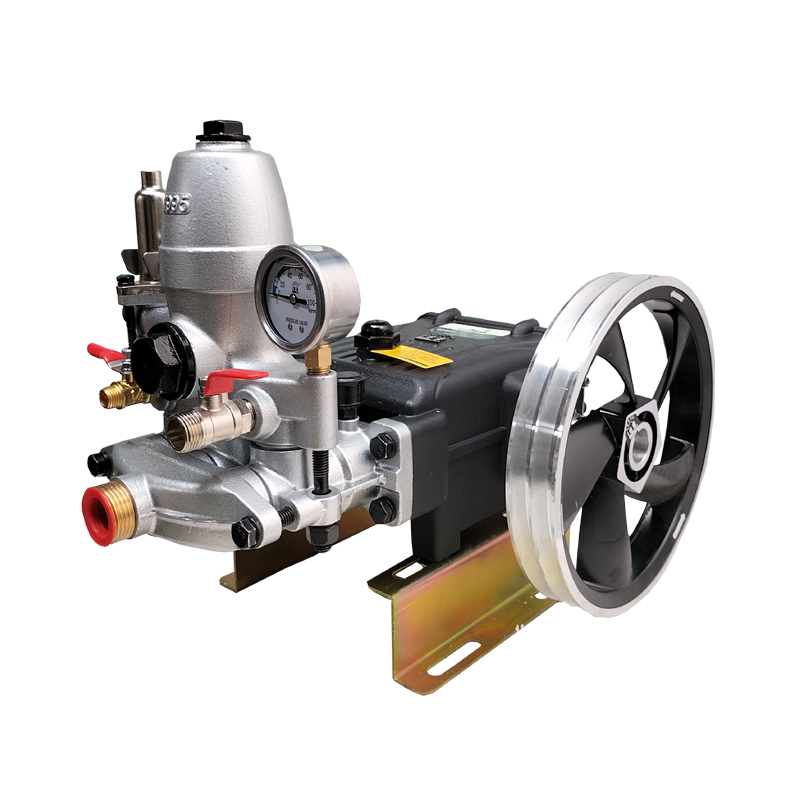

HTP-30 F

TECHNICAL DATA
Model HTP 30 F
Speed (cc) 520-900
Flow Rate (lpm) 19.5-34
Working Pressure (Kg./cm2.) 15-50
Power Hp (Required) 3-5

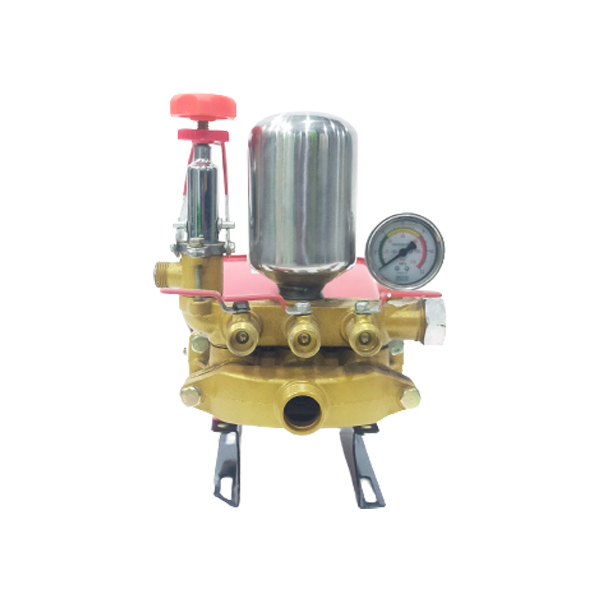

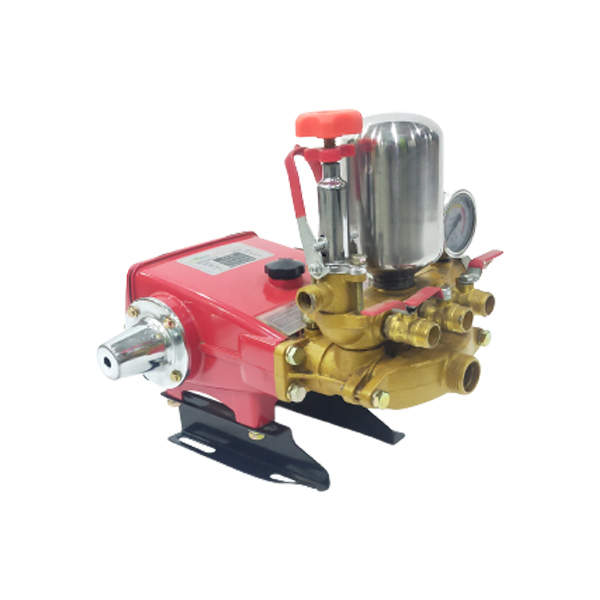

HTP-50

TECHNICAL DATA
Model HTP 50
Speed (cc) 800-1000
Flow Rate (lpm) 33-44
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 5-7.5

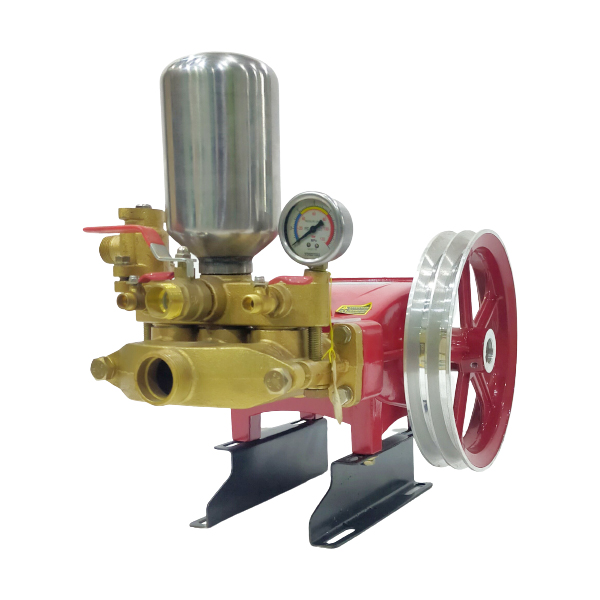

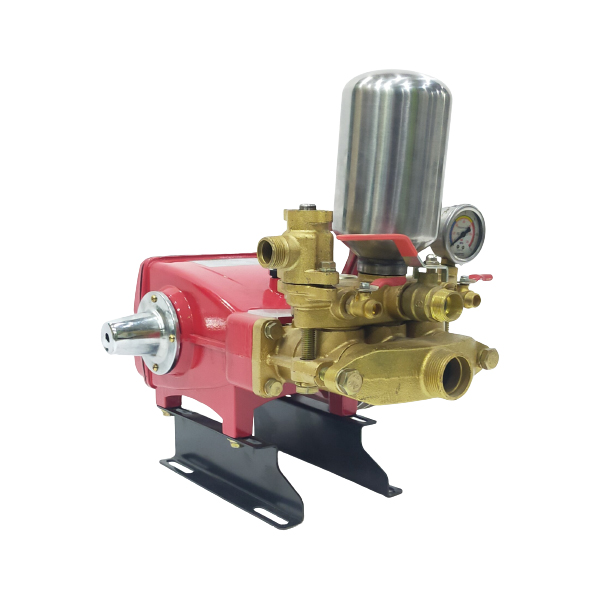

HTP-80

TECHNICAL DATA
Model HTP 80
Speed (cc) 800-1000
Flow Rate (lpm) 55-65
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 7.5-10

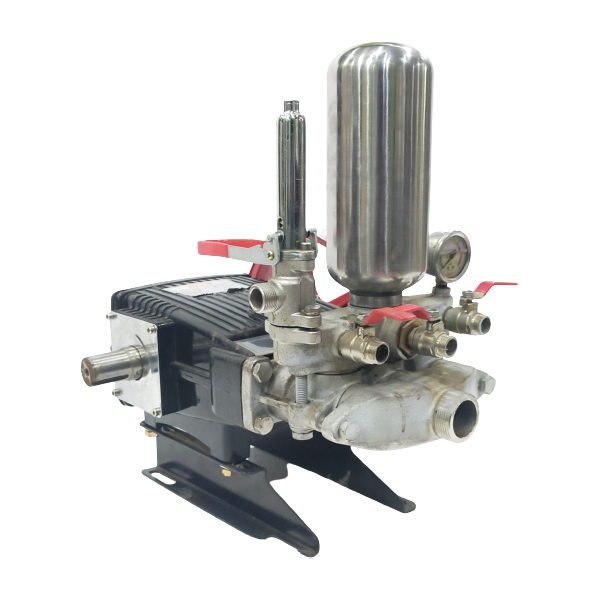

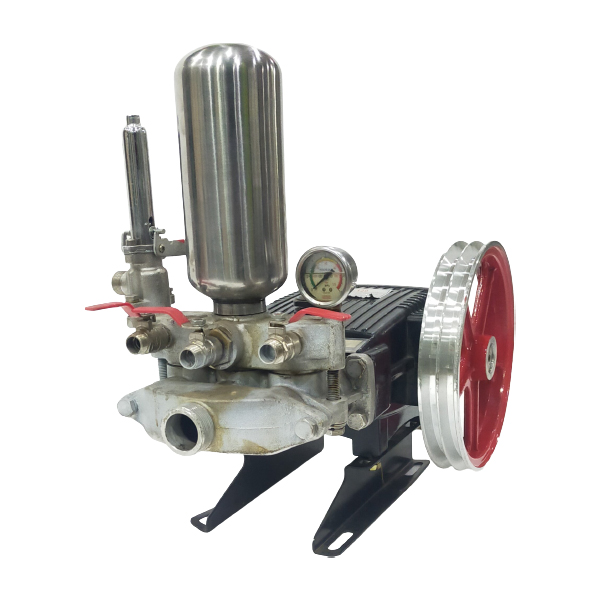

HTP-120

TECHNICAL DATA
Model HTP 120
Speed (cc) 800-1000
Flow Rate (lpm) 103-116
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 10-15




Garden Sprayers

Garden sprayers are supplied with both electric and petrol engine models with Size 16, 18, 22, 26 and 30 H. T.P. RICOITALY garden sprayers are one of the best value for money machine, highly appreciated and very successful in apple, mango and grape orchards of Himachal Pradesh, Jammu and Kashmir, Uttarakhand and Maharashtra.

SPECIAL FEATURES
  • Portable, compact, lightweight, and easy to carry.
  • Knapsack system provided.
  • Specially designed for the hilly region
  • Reduction gear system also provided to couple pump and engine instead of belts.
  • Better pressure due to proper R.P.M matching of pump and engine.

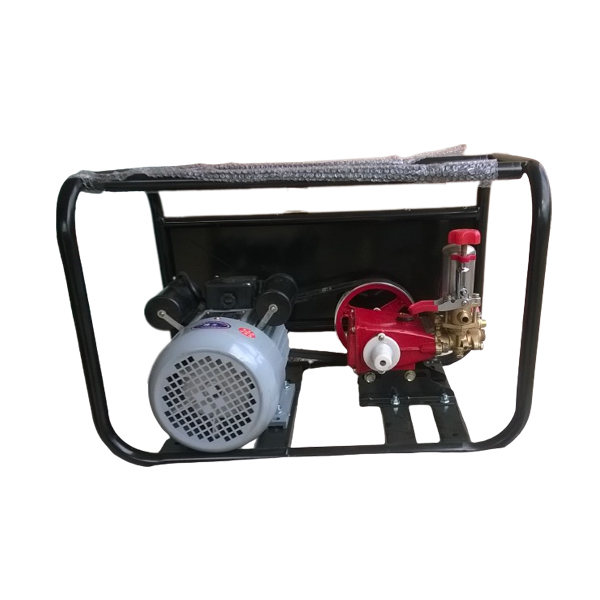

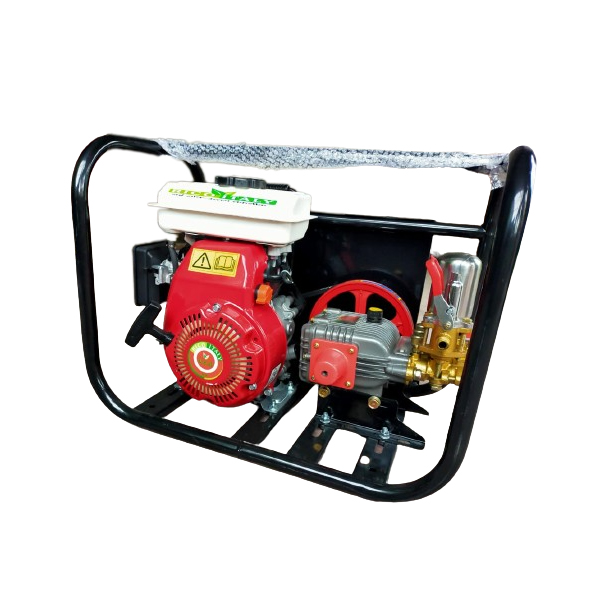

GARDEN SPRAYER GRI-16M(1M)/GRI-16E/GRI-16EM


TECHNICAL DATA

Model GRI-16M(1M)/GRI-16E/GRI-16EM
Speed (cc) 3600
Flow Rate (lpm) 7-19
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 2.5

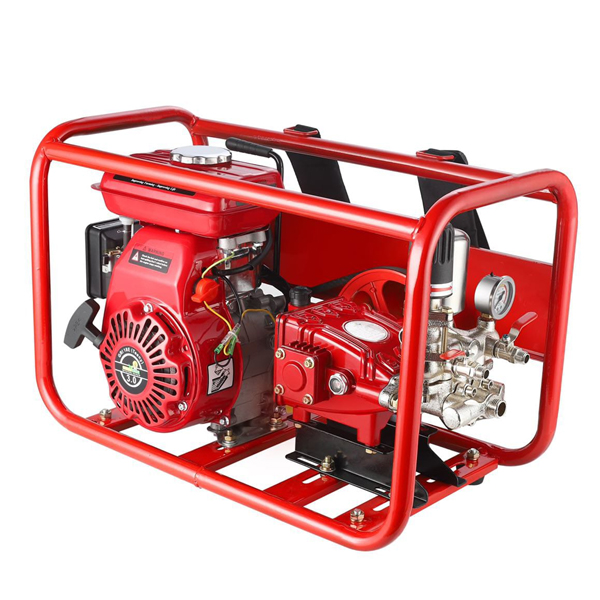

GARDEN SPRAYER GRI-18EM (LILY PUT)


TECHNICAL DATA

Model GARDEN SPRAYER GRI-18EM (LILY PUT)
Speed (cc) 3600
Flow Rate (lpm) 18 - 28
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 3.0

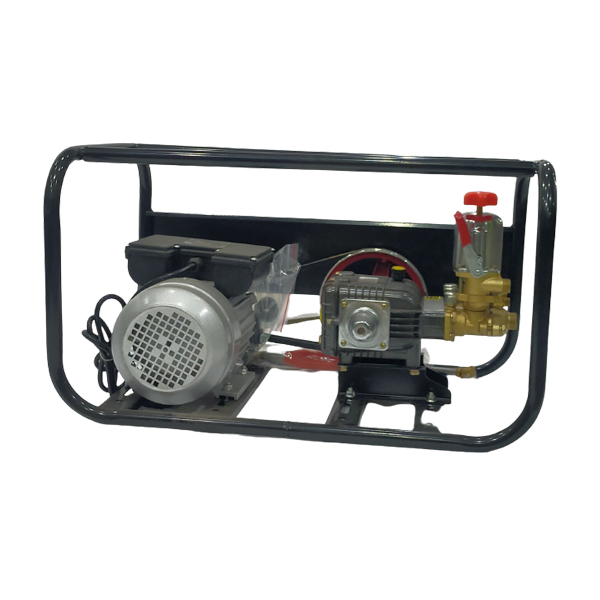

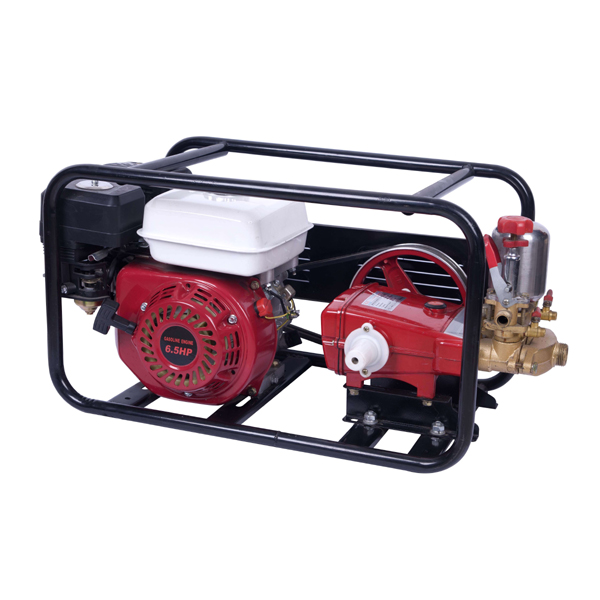

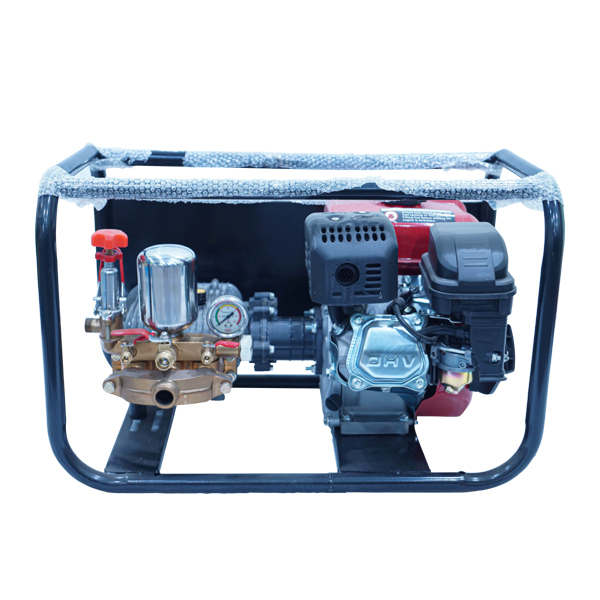

GARDEN SPRAYER GRI-22E/GRI-22M/GRI-22EM


TECHNICAL DATA

Model GRI-22E/GRI-22M/GRI-22EM
Speed (cc) 3600
Flow Rate (lpm) 14-22
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5

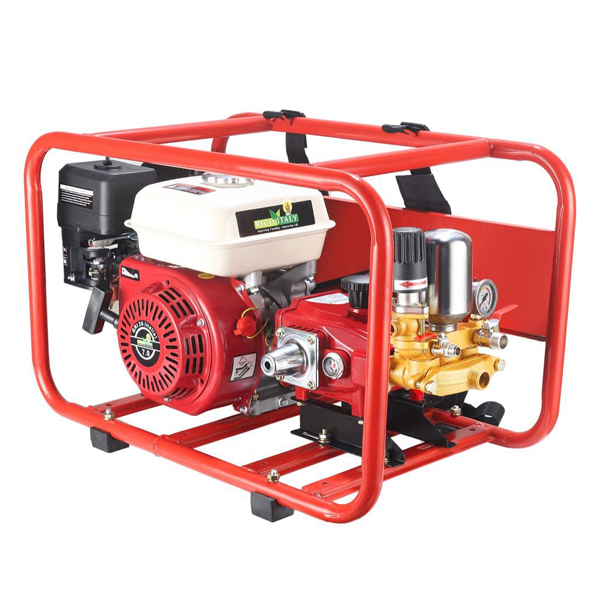

GARDEN SPRAYER GRI-26E(ITALIA)


TECHNICAL DATA

Model GRI-26E(ITALIA)
Speed (cc) 3600
Flow Rate (lpm) 14 - 26
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 2.5

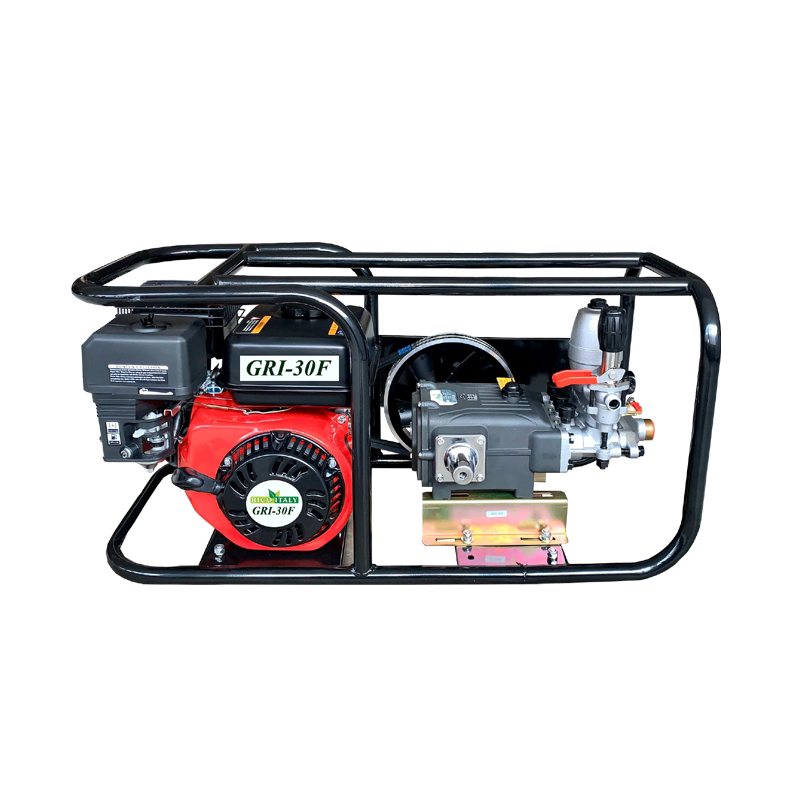

GARDEN SPRAYER GRI-30F


TECHNICAL DATA

Model GRI-30F
Speed (cc) 520-900
Flow Rate (lpm) 19.5-34
Working Pressure (Kg./cm2.) 15-50
Power Hp (Required) 3-5

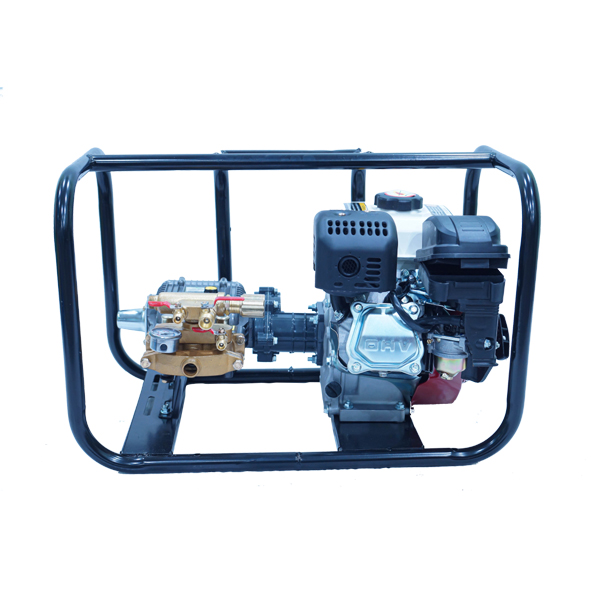

GARDEN SPRAYER GRI-30EM


TECHNICAL DATA

Model GRI-30EM
Speed (cc) 3600
Flow Rate (lpm) 25 - 35
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5

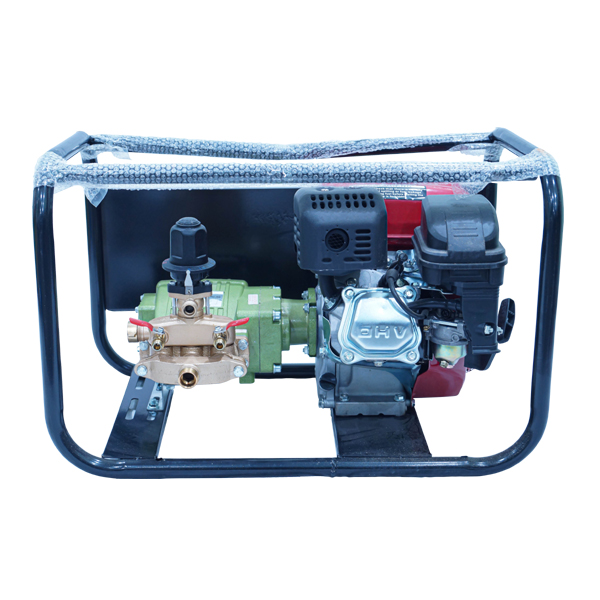

GARDEN SPRAYER GRI-30EMH


TECHNICAL DATA

Model GRI-30EMH
Speed (cc) 3600
Flow Rate (lpm) 25 - 35
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5

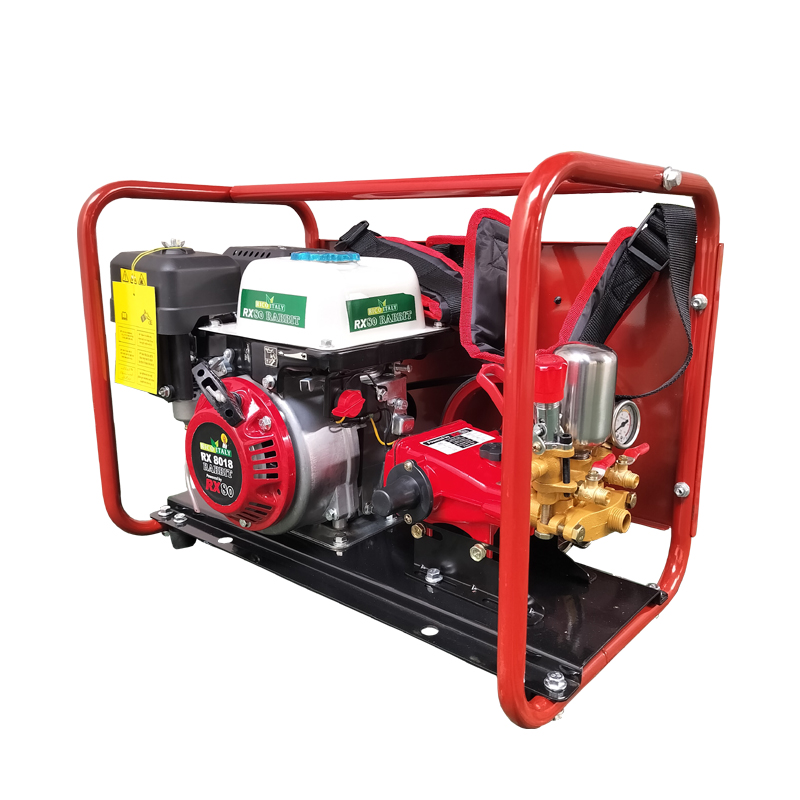

GARDEN SPRAYER GRI-8018


TECHNICAL DATA
