Sprayers

HTP SPRAYERS

Designed for economic and effective application of pesticide also Suitable for water lifting and large spraying operations in orchards, agricultural lands, coffee & tea plantation.

HTP horizontal triplex piston power sprayer unit is Supplied with pulley, pressure vessel, pressure gauge, pressure regulator valve, and some spare parts. We have a complete range of high-pressure sprayers starting from 16, 18, 22, 26, 30, 50, 80, and 120 liters. Our sprayers are designed to work continually for a longer duration without any maintenance.

SPECIAL FEATURES
  • Good range, available of all sizes
  • Spare parts easily available
  • Higher pressure, value for money.


HTP-16

TECHNICAL DATA
Model HTP 16
Speed (cc) 800-1200
Flow Rate (lpm) 17-19
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 1-2




HTP-18

TECHNICAL DATA
Model HTP 18
Speed (cc) 800-1200
Flow Rate (lpm) 18-28
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 2




HTP-22

TECHNICAL DATA
Model HTP 22
Speed (cc) 800-1200
Flow Rate (lpm) 14-22
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 2




HTP-26

TECHNICAL DATA
Model HTP 26
Speed (cc) 800-1200
Flow Rate (lpm) 14-26
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 3




HTP-30

TECHNICAL DATA
Model HTP 30
Speed (cc) 800-1000
Flow Rate (lpm) 33-40
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 3-5




HTP-50

TECHNICAL DATA
Model HTP 50
Speed (cc) 800-1000
Flow Rate (lpm) 33-44
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 5-7.5




HTP-80

TECHNICAL DATA
Model HTP 80
Speed (cc) 800-1000
Flow Rate (lpm) 55-65
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 7.5-10




HTP-120

TECHNICAL DATA
Model HTP 120
Speed (cc) 800-1000
Flow Rate (lpm) 103-116
Working Pressure (Kg./cm2.) 20-45
Power Hp (Required) 10-15

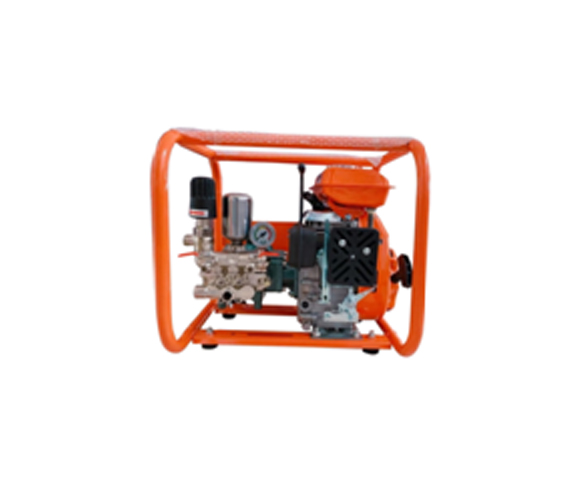

Garden Sprayers

Garden sprayers are supplied with both electric and petrol engine models with Size 16, 18, 22, 26 and 30 H. T.P. RICOITALY garden sprayers are one of the best value for money machine, highly appreciated and very successful in apple, mango and grape orchards of Himachal Pradesh, Jammu and Kashmir, Uttarakhand and Maharashtra.

SPECIAL FEATURES
  • Portable, compact, lightweight, and easy to carry.
  • Knapsack system provided.
  • Specially designed for the hilly region
  • Reduction gear system also provided to couple pump and engine instead of belts.
  • Better pressure due to proper R.P.M matching of pump and engine.



GARDEN SPRAYER GRI-16M(1M)/GRI-16E/GRI-16EM


TECHNICAL DATA

Model GRI-16M(1M)/GRI-16E/GRI-16EM
Speed (cc) 3600
Flow Rate (lpm) 7-19
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 2.5




GARDEN SPRAYER GRI-18EM (LILY PUT)


TECHNICAL DATA

Model GARDEN SPRAYER GRI-18EM (LILY PUT)
Speed (cc) 3600
Flow Rate (lpm) 18 - 28
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 3.0




GARDEN SPRAYER GRI-22E/GRI-22M/GRI-22EM


TECHNICAL DATA

Model GRI-22E/GRI-22M/GRI-22EM
Speed (cc) 3600
Flow Rate (lpm) 14-22
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5




GARDEN SPRAYER GRI-26E(ITALIA)


TECHNICAL DATA

Model GRI-26E(ITALIA)
Speed (cc) 3600
Flow Rate (lpm) 14 - 26
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 2.5




GARDEN SPRAYER GRI-30EM


TECHNICAL DATA

Model GRI-30EM
Speed (cc) 3600
Flow Rate (lpm) 25 - 35
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5




GARDEN SPRAYER GRI-30EMH


TECHNICAL DATA

Model GRI-30EMH
Speed (cc) 3600
Flow Rate (lpm) 25 - 35
Working Pressure (Kg./cm2.) 1.5-2.5
Power Hp (Required) 5.5





BATTERY SPRAYERS

Battery Sprayers are conventional and most popular Sprayers used worldwide. They are ideal to spray insecticides, pesticides, fungicides, herbicides etc. These Sprayers have multiple applications and are widely used in agriculture, horticulture, sericulture, plantations, forestry, gardens etc.

BATTERY SPRAYER RI 16B


TECHNICAL DATA

Model RI 16 B
Tank 16 Ltr.
Battery 12V - 8AH
Working Pressure (Kg./cm2.) 5-6
Discharge 2-3 Lpm




BATTERY SPRAYER RI 16 BT


TECHNICAL DATA

Model RI 16 BT
Tank 16 Ltr.
Battery 12V - 8AH
Working Pressure (Kg./cm2.) 5-6
Discharge 2-3 Lpm




BATTERY SPRAYER RI 16 BTM


TECHNICAL DATA

Model RI 16 BTM
Tank 18 Ltr.
Battery 12V - 8AH
Working Pressure (Kg./cm2.) 5-6
Discharge 2-3 Lpm




BATTERY SPRAYER RI 16 BTP


TECHNICAL DATA

Model RI 16 BTP
Tank 18 Ltr.
Battery 12V - 12AH
Working Pressure (Kg./cm2.) 8-9
Discharge 5-6 Lpm




MANUAL OPERATED SPRAYERS

Manual Operated

1.0 Ltr.
1.5 Ltr.
2.0 Ltr.



Battery Sprayer Mist Gun

Model: RI-BTMG



POWER SPRAYERS / MIST SPRAYER / MECHANICAL POWER SPRAYERS

They are generally used for spraying fertilizers on plants and crops. These sprayers are economical, easy to use, and adjustable in all directions. They can be used in small and big agricultural fields, orchards, lawns nurseries, etc. We have both 2 stroke and 4 stroke power sprayers both are equally successful.

Mist Sprayer RI 708

ModelRI RI 708
Tank20/25 Ltr.
EngineTU26 (2 Stroke)
Pressure25-30 Ltr.
Discharge8 Lpm


Mist Sprayer RI 708 MD

ModelRI 708 MD
Tank18 Ltr.
Engine1E52F
Rated Power3.8 Kw
Rorating6600 r/min
Displacement77 cc


Mist Sprayer RI 708 4S

MRP: 14,000/-
ModelRI 708 4S
Tank20/25 Ltr.
Engine139 (4 Stroke)
Pressure25-30 Ltr.
Discharge8 Lpm


RI 708 4SH

ModelRI 708 4SH
Tank20/25 Ltr.
EngineGX35 (4 Stroke)
Pressure25-30 Ltr.
Discharge8 Lpm

RI 152 T

TECHNICAL DATA
ModelRI 152 T
Tank Capacity100 Ltr.
Pump & EngineRI 16EM (RI 152 ENGINE)



GRI 22 EMT

TECHNICAL DATA
ModelGRI 22 EMT
Tank Capacity220 Ltr.
Pump & EngineRI 22EM (RI 168 ENGINE)



RI 500 PTS

TECHNICAL DATA
ModelRI 500 PTS
Tank Capacity500 Ltr.
PumpHTP 30
Flow Rate30-35 Ltr. / min.
Hose Pipe100 Mtr. (10 mm)
Tank MaterialHDPE



RI 1000 TS

TECHNICAL DATA
ModelRI 1000 TS
Tank Capacity1000 Ltr.
PumpHTP 50
Flow Rate50 Ltr. / min.
Hose Pipe100 Mtr. (10 mm)
Tank MaterialHDPE



RI 2000 TS

TECHNICAL DATA
ModelRI 2000 TS
Tank Capacity2000 Ltr.
PumpHTP 80
Flow Rate80 Ltr. / min.
Hose Pipe100 Mtr. (10 mm)
Tank MaterialHDPE

ULV SPRAYER

Disinfection is necessary for a healthy and safe life. These sprayers are used for very low volume spraying and fogging as It compresses pesticides or disinfectants through a specially designed nozzle Producing a very fine cold mist. Our ULV sprayers are electric versions so they are ideal for indoor applications as they don’t produce exhaust gases and are less noisy.

RICOITALY ULV sprayers are in two models one is the knapsack version, second is the desk type version.

RI CF 20

Model RI CF 20
Tank Capacity 20 Ltr.
Power Supply 110 - 220V
Flow Rate 0.3 Ltr. / min.
Drop Size 5 - 20 micron
Horizontal Range 10 mtr.
Weight 4.5 Kg.
Power 2.2 Kw./25000 rpm


Air Blast Mist Sprayer

RI 8000 (DRAGON)

RICOITALY Air blast mist sprayers offer a great solution to get complete coverage in the most difficult applications. The air-blast mist sprayer generates a high-velocity air stream turbulently mixing a fine chemical mist with air.

It can be used in many applications like Fruit orchards, livestock, Vineyards, vegetables, cotton, Dairies, Nurseries, Sanitation work etc.

  • Experts report 50% or more savings in the use of chemicals
  • Less water to haul means 50-60% less fuel to consume
  • Air mixtures require 60-90% less labor than some water solutions
  • Less maintenance and easy to operate
  • Manually driven, Easy to carry without any extra cost of tractor or engine
  • Heavy duty HDPE tank, portable light weight engine and pump, consumes lesser space, easy to operate in small orchards in hilly region

TECHNICAL DATA
Engine Type 7 Hp
Pressure (Mpa) 2.0 - 3.5
Flow Rate(L/min) 14-22
Pump Speed (r/min) 800/1200
Diameter (mm) 500
Fan Speed (r/min) 3000 - 4000
No. of Nozzle 8
Tank Volume (L) 200
Spray Range (m) 5.0 - 7.0
Dimension 840 x 460 x 660 mm


Air Blast Mist Sprayer
