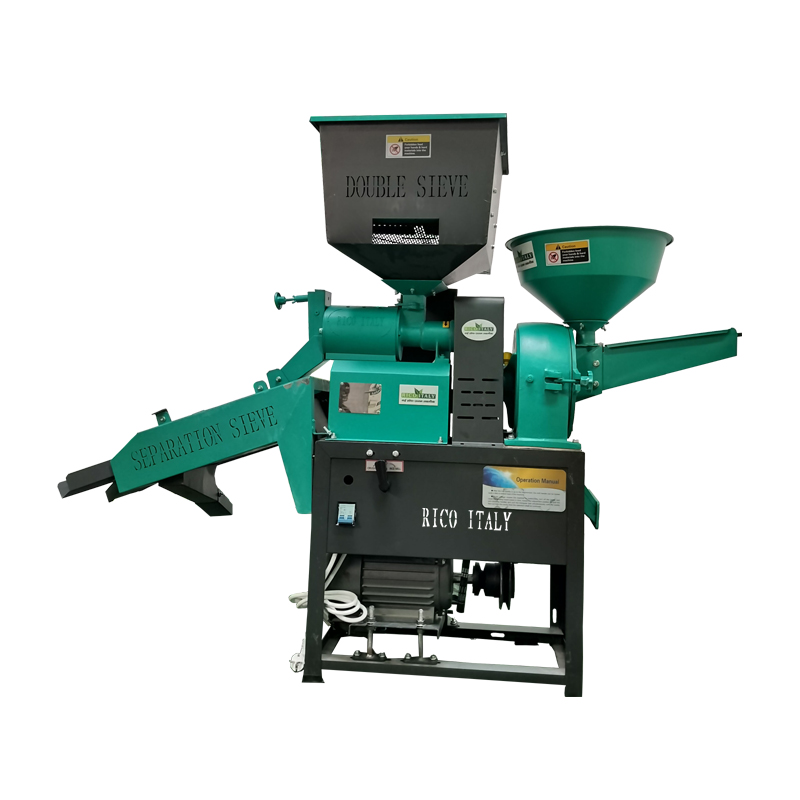

4 IN ONE PULVERISER – RI DYNA
OVERVIEW
It is a unique machine which can be used for 4 purposes
- RICE MILL
- FLOUR MILL
- TO SEPARATE BROKEN RICE AND WHOLE RICE
- TO SEPARATE STONES/STRAW FROM PADDY.
It has a reversible motor design which makes it compact, easy to use, easy to transport and easy to understand. This machine is very good for domestic as well as commercial use. It easily replaces the lengthy, time taking, heavy power, heavy/bigger machine, and 2-3 machine process into a very simple and compact process. Many types of grains and spices like Rice, wheat, barley, chana, soya, turmeric, chilly, coriander, etc can be easily processed.
TECHNICAL DATA
| Power |
2.2kw/ 3Hp. |
| Productivity (Kg/h) |
120-150 (Rice)/150 (Flour) |
| Screening Rate % |
90 |
| Total Weight |
87 |
| Tilling Width |
900 mm |
| Tilling Depth |
> 100 mm tilling depth |
| Gear Shifting |
2 Forward, 1 Reverse |
| Weight |
45 kg. |
| Dimension |
840 x 460 x 660 mm |
RICE MILL
This machine has reformed the thought process and vision of Indian paddy growers along with small Rice mill owners. Earlier big machines, high investments, high power requirements discouraged farmers to convert paddy into rice and so they use to sell paddy very cheaply to dealers. This machine is compact, less power requirement, less investment, less space requirement, low maintenance, and very good output, which makes it a very good business proposition.
This machine converts paddy into semi-polished rice, it separates broken rice and finely crushed rice, it also has an adjustment for different varieties of rice. Overall,this machine is a win-win bonanza for commercial as well as domestic use. We provide rice mill in 2 models; one is normal M.S and cast-iron body and second has stainless steel body and output.

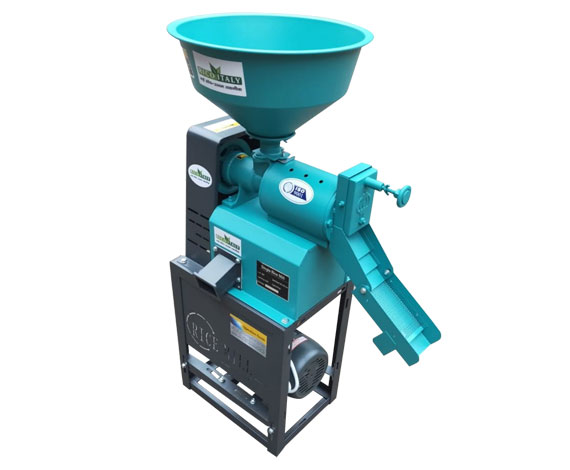

RI 6N 40
TECHNICAL DATA
| Model | RI 6N 40 |
| Motor | 3 HP Single Phase |
| Rotar speed | 1600 rpm |
| Rotar Diameter | 40 mm |
| Application | Rice, Corn, Wheat, Coffee, Millet |

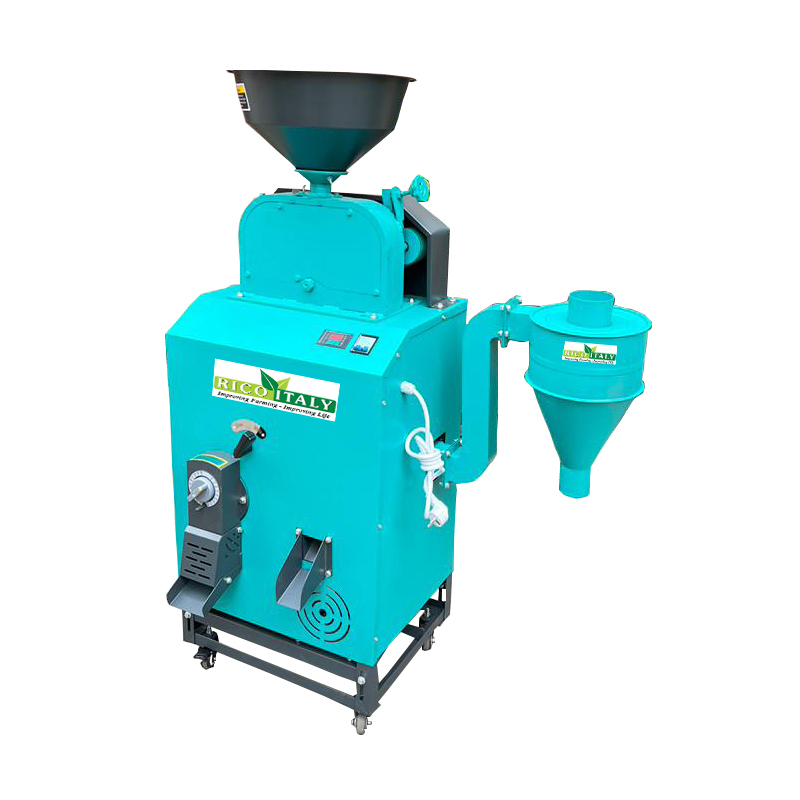

RI 6N 40 "RISO"
TECHNICAL DATA
| Model | RI 6N 40 "RISO" |
| BROWN RICE MILLING | =<180 kg/Hr. |
| WHITE RICE MILLING | 130-170 kg/Hr. |
| POWER | 3 HP SINGLE PHASE |

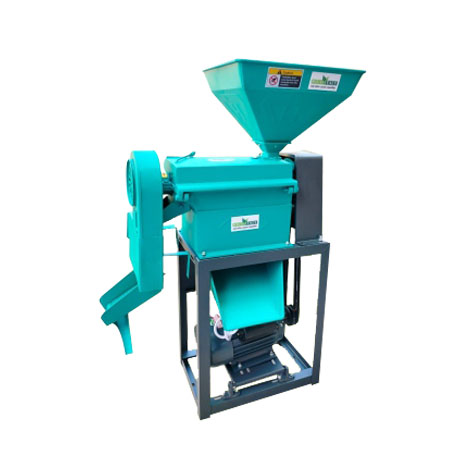

RI 6N 40 Prime
TECHNICAL DATA
| Model | RI 6N 40 Prime |
| Motor | 3 HP Single Phase |
| Production Capacity | 200 - 250 |
| Rotar Diameter | 100 mm |
| Application | Rice, Corn, Wheat, Coffee, Millet |

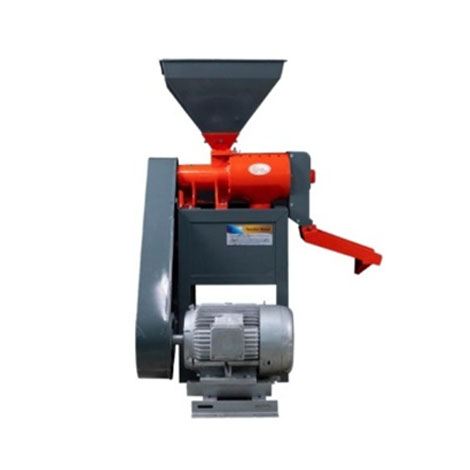

RI 6N 70
TECHNICAL DATA
| Model | RI 6N 70 |
| Motor | 10 HP (3 PHASE MOTOR) |
| Production Capacity | 400 - 600 |
| Rotar Diameter | 70 mm |
| Application | Rice, Corn, Wheat, Coffee, Millet |
Rice Mill Stainless Steel
TECHNICAL DATA
| Model | Rice Mill Stainless Steel |
| Motor | 3 HP Single Phase |
| Rotar Speed | 1600 rpm |
| Rotar Diameter | 40 |
| Application | Rice, Corn, Wheat, Coffee, Millet |

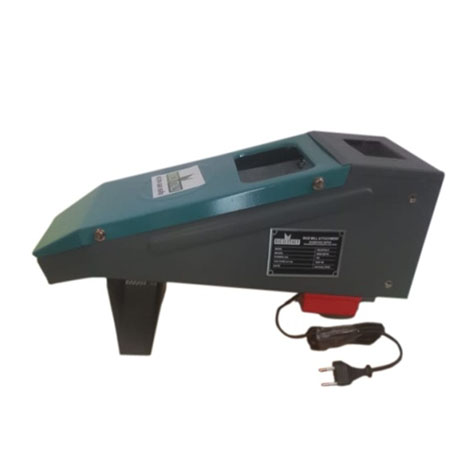

RI 6N ZETA
It is Rice mill attachment and used to separate broken rice from whole rice/ it acts as a rice grader. It allows farmers to control quality and also gain better prices.
It is compact, easy to use, easy to transport and easy to understand. It is very good for domestic as well as commercial use. It easily replaces the lengthy, time taking, heavy power, heavy/bigger machine, 2-3 machine process into a very simple and compact process.
Technical Data
| Model | RI 6N ZETA |
| Power | Sinlge Phase Motor |
| Application | Rice Grader |

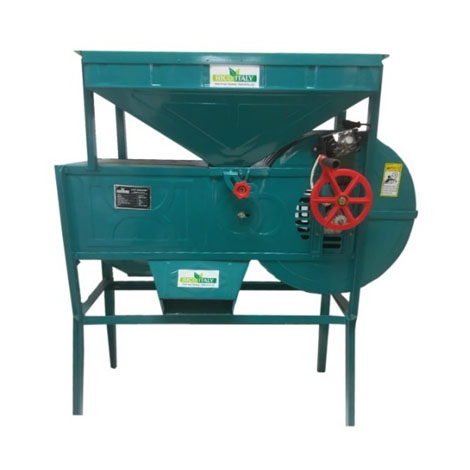

RI 6N PLUTO
MRP: 24,500/-
Winnowing is the method in which heavier components of the mixture are separated from the lighter substances with the help of wind. This method is used for separating grains from husk after the process of threshing.
Our winnower or cleaner is designed with precision, suitable for efficient cleaning of all cereal grains, pulses and seeds of different crop including paddy, wheat, maize, mustard seeds (Sarson), soybean, millets, peanuts etc. Prominently it is being used in Indian grain markets for the cleaning of paddy and wheat.
SPECIAL FEATURES
• Compact structure, light weight, easy to move.
• The machine can clean grains and blow out impurities at same time.
• It can be operated manually and by power.
• Very useful for small farmers.
Technical Data
| Model | RI 6N PLUTO |
| Power | 0.15 HP |
| Production Capacity | 800-2000 Kg./hrs |
| Spindle speed | 1400 RPM |
| Application | Corn, Wheat, Rice, Millets & Similar |

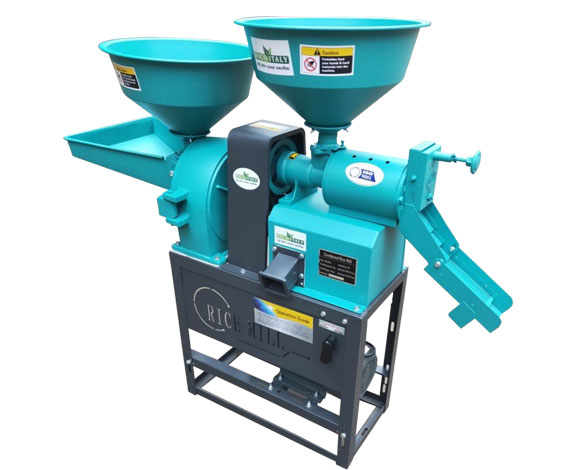

Rice cum Flour Mill (Y86 2 IN 1)
It is a unique machine which can be used for dual purposes – As a Rice mill and as a pulverizer. It has a reversible motor design which makes it compact, easy to use, easy to transport and easy to understand. This machine is very good for domestic use and Better to use for the micro and small industry as it can pulverize many types of grains and spices like wheat, barley, chana, soya, turmeric, chilly, coriander, etc.
| Model | RI Y 86 |
| Motor | 3.0 HP |
| Production (Rice Mill) | 146 Kg. / hrs. |
| Production (Animal Feed) | 63 Kg. / hrs. |
| Spindle Speed (Rice Mill) | 1600 rpm |
| Spindle Speed (Flour Mill) | 4800 rpm |
| Chamber Dia | 220 mm |
